Vicarb Heat Exchanger Plates V20 V28 V45 V60 Durable and for Pharmaceutical Manufacturing

Name: Vicarb Heat Exchanger Plates V20 V28 V45 V60 Durable and for Pharmaceutical Manufacturing
Brand: Victory
Price: 50 USD

Quality Vicarb Heat Exchanger Plates V20 V28 V45 V60 Durable and for Pharmaceutical Manufacturing wholesale

Brand Name : Victory

Model Number : V4、V8、VU8、V13、V20、V28、V45、V60

Certification : ISO SGS

Place of Origin : China

MOQ : 10pcs

Price : 50 - 500pieces $18-$27

Payment Terms : T/T, L/C, Western Union,

Supply Ability : 50000pcs per month

Delivery Time : 15-20 days

Packaging Details : Plywood Box

Model : Heat Exchanger Plate

After Warranty Service : Online support

Heat Transfer Area : 10-5000m²

Keyword : heat exchanger plate

Plate Pattern : Chevron

Plate Type : Gasket Plate Heat Exchanger

Plates Material : SUS304 316 316L 310S 904

Surface Treatment : powder coating,Clean,quiet

Veneer Area : customized

Gasket Material : NBR HNBR EPDM HEPDM VITON FKM Silicone/CR/Neoprene

Contact Now

Product Description

Vicarb Heat Exchanger Plates V20 V28 V45 V60 Durable and for Pharmaceutical Manufacturing

Heat Exchanger Plates

Sterilization Processes: The V4, V8, and VU8 plates are ideal for the sterilization of equipment, vessels, and components in pharmaceutical manufacturing, ensuring the highest levels of sterility throughout the production process.
Heat Exchange in Cleanroom Environments: These plates can be utilized for heat exchange processes within cleanroom environments critical for pharmaceutical production.
Steam Heating and Sterilization Applications: They are suitable for critical steam heating and sterilization applications in pharmaceutical formulations and active pharmaceutical ingredient (API) manufacturing.
Controlled Temperature Processes: Designed to handle controlled temperature processes for the sterilization of pharmaceutical products before packaging, ensuring product sterility and integrity.
Heat Treatment for Pharmaceutical Compounds: The plates are well-suited for heat treatment processes to guarantee the sterility of pharmaceutical compounds and products.
In summary, the V4, V8, and VU8 Optimized Design Heat Exchanger Plates offer tailored solutions for sterilization in pharmaceutical production, providing efficient, reliable, and compliant heat exchange capabilities to ensure the highest levels of sterility essential for pharmaceutical manufacturing processes.

Brand	Model
	V4,V8,VU8,V13,V20,V28,V45,V60

Material	Specification
Stainless Steel	SUS304 316 316L 310S 904
Titanium and titanium-palladium alloy	TAi TAi-Pd
Hastelloy	C276 D205 B2G
Nickel	Ni200 Ni201
Molybdenum	254

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.

Applacations

Plate material	Suitable for fluids
Stainless steel (SUS304.316, etc.)	Purified water, river water, edible oil, mineral oil
Titanium and titanium palladium (Ti, Ti-Pd)	Sea water, salt water, salt compounds
20Cr,18Ni,6Mo(254SMO)	Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution
Nickel (Ni)	High temperature, high concentration caustic soda
HASTELLOY alloy (C276, D205, B2G)	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid

Plate heat exchanger plate thickness configuration

AISI 304 is usually 0.4 or 0.5 mm thickness
AISI 316 is always 0.5 and 0.6 mm
254 SMO (high alloy) typically 0.6 mm
Titanium plates are always 0.5 and 0.6 mm
Some have thicker plates (for high pressure applications)
Some PHEs have 0.4 mm (low pressure operation)
Hastelloy C-276 (nickel alloy) typically 0.6 mm

Production Process:

Raw material preparation: High-quality stainless steel plates are selected as raw materials due to their excellent corrosion resistance and thermal conductivity. The plate thickness is determined based on product specifications and design requirements.
Cutting and leveling: The stainless steel plates are accurately cut using machine tools to meet the design requirements. After cutting, leveling treatment is performed to ensure a smooth and even surface.
Stamping: The flattened plates undergo stamping using a hydraulic press to create specific herringbone patterns. The resulting plates have a high turbulence coefficient, promoting efficient heat transfer. Precise control is maintained during the stamping process to prevent plate deformation or damage.
Surface treatment: The plates undergo surface treatment such as polishing, sandblasting, or coating to enhance corrosion resistance and heat transfer performance. The choice of treatment method depends on specific requirements.
Assembly and inspection: The plates are assembled according to the design requirements, forming a detachable plate heat exchanger with rubber gasket seals or a fully welded plate heat exchanger through argon arc welding. Tight fitting and absence of gaps are ensured during assembly. A rigorous performance pressure test is conducted after assembly, and a factory report is issued to verify compliance with quality standards.

Product Tags:

Pharmaceutical Manufacturing Heat Exchanger Plates

Durable Heat Exchanger Plates

Vicarb Heat Exchanger Plates V20

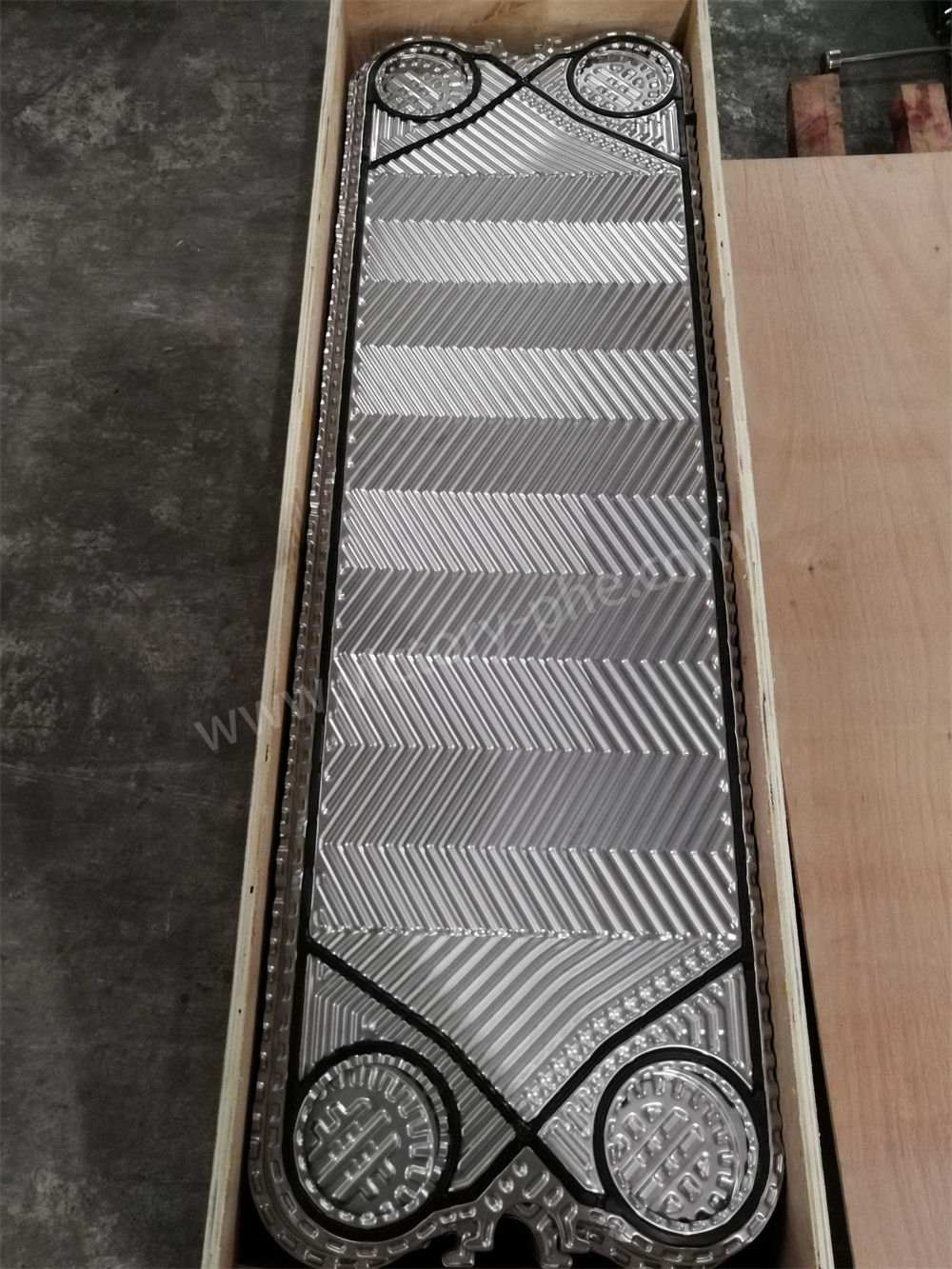

Vicarb Heat Exchanger Plates V20 V28 V45 V60 Durable and for Pharmaceutical Manufacturing Images
