Product Description

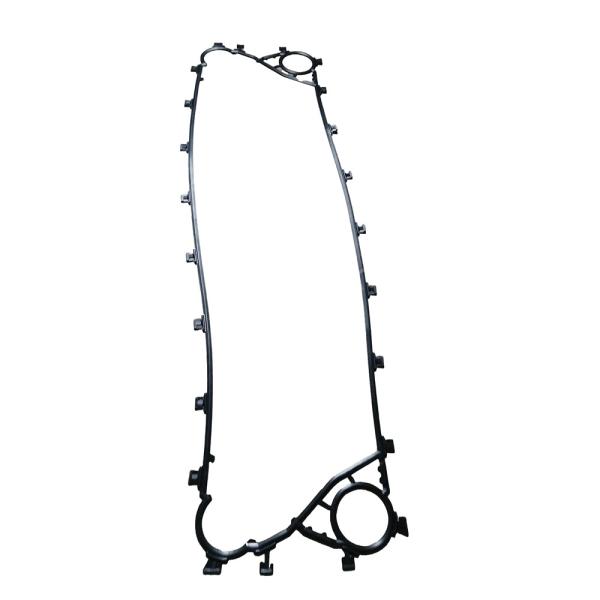

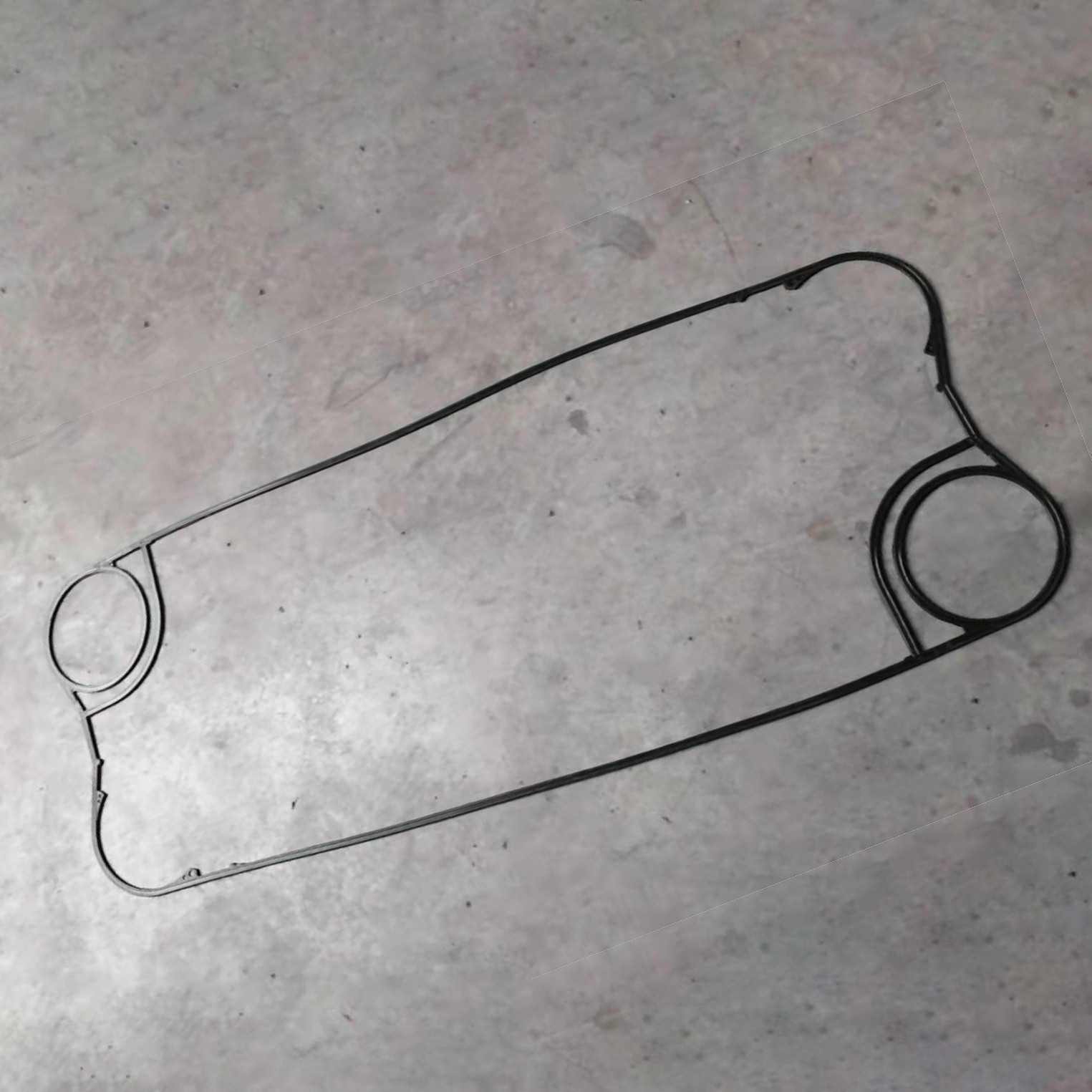

Superior sealing capabilities Heat Exchanger Gasket durability Universal Viton Gaskets
Heat Exchanger Gasket:
Chemical Resistance: Viton gaskets resist a broad spectrum of chemicals, including acids, fuels, oils, and solvents, making them suitable for use in chemical processing, automotive, and aerospace industries.
Temperature Resistance: They maintain their sealing properties at extreme temperatures ranging from -20°C to 200°C (-4°F to 392°F), and even higher for short periods, depending on the specific formulation.
Sealing Performance: Universal Viton gaskets offer excellent compression set resistance, ensuring reliable sealing under varying pressures and conditions.
Durability: They are highly durable and exhibit low permeability, contributing to longer service life and reduced maintenance costs.
Versatility: Available in various thicknesses and sizes, Universal Viton gaskets can be custom-cut to fit specific applications, including pumps, valves, flanges, and more.
FDA Compliance (optional): Certain formulations of Viton gaskets meet FDA regulations for use in food processing and pharmaceutical industries.
Environmental Resistance: They are resistant to ozone, sunlight, and weathering, making them suitable for outdoor applications.
| Brand/Maker | Model |
| GEA | AN45L3,AN45L4,AS6,AS20,AS25,AC190,AC230,AP20,AP25,AP35 |
Gasket Material:
| Material | Operating Temperature Range | Usage conditions |
| Nitrile Gaskets | ≤135℃ | Resistant to mineral, animal, vegetable oil and other non-polar media |
| Hydrogenated Nitrile Gaskets | -5℃-150℃ | Resistant to sulfur-containing crude oil, H2S-containing mixed media, high-temperature edible oil and other non-polar media |
| EPDM Gaskets | ≤160℃ | Resistant to hot water, water vapor, edible beverages, and high-temperature sterilization of milk |
| Solvent-based EPR Gaskets | -20℃-150℃ | Polar solvents and many other good solvents, such as lipid solvents. Dilute inorganic acids, alkalis, etc. |
| Universal Viton Gaskets | ≤180℃ | Non-polar mineral oil, lubricating oil and other alcohol-containing fuels |
| Special Fluorine Rubber Gaskets | 30℃-130℃ | Inorganic oxygen-containing acids such as high-concentration acids and bases |
Installation method
Plate heat exchanger sealing gaskets can be divided into 3 forms according to the installation method on the heat exchange plates:
1. Direct sticking type: After applying sealant on the sealing gasket, it is directly glued into the installation groove of the heat exchange plate.
2. Plastic nail inlaid type: The heat exchange plate is designed with assembly holes, and rubber nails are designed on the side of the sealing gasket. After the sealing gasket is placed in the installation slot, the rubber nails are embedded in the assembly holes.
3. Snap-on type: There are buckles on the side of the sealing gasket, and the buckles are used to buckle the sealing gasket onto the heat exchange plate.
The sealing gasket uses different types of rubber according to different media and operating temperatures.
| Main Body Gasket | Operating Temperature (℃) | Suitable Fluid |
| NBR | -15 ~ +135 | Water, Sea water, Mineral Salt, Brine |
| EPDM | -25 ~ +180 | Hot water, Vapour, Acid, Base |
| F26 | -25 ~ +230 | Acid, Base, Fluid |
| FTP | 0 ~ +160 | Concentrated acid, Base, High temperature oil, Vapour |
| FKM | -25~200 | Steam acid,98% SO2,Cl water. |
The steps for replacing the gasket in a heating exchanger are as follows:
- Carefully remove the old gasket, ensuring that no scratches are made on the gasket groove during disassembly.
- Use butanone, or other ketone solvents to remove any residue from the gasket groove.
- Clean the gasket groove and gasket with a clean cloth or cotton swab, ensuring they are free from dirt and debris.
- Apply adhesive evenly to the gasket groove.
- Install the clean new gasket onto the plate, ensuring proper alignment.
- After installing the gasket on the plate, allow it to dry naturally in a flat, cool, and well-ventilated area before installation and use.
Q&A
Q1: Does the gaskets product come with a warranty?
A1: Gasket are consumable accessories, and the replacement cycle is generally determined according to the specific conditions of use by the customer. It is related to the use environment, medium, temperature, etc. Usually we recommend purchasing more for replacement and backup purposes.
Q2: Is there a discount available for wholesale or bulk purchases?
Answer: Yes, we offer discounts for wholesale and bulk purchases. If you are interested in purchasing a large quantity of items or engaging in wholesale business, please contact our wholesale department or customer service team for information regarding wholesale discounts and minimum purchase quantities.
