Alloy C276 Heat Exchanger Plates For APV/SPX H17 N35 N50 J060 J092 J107 J185 B063 A055 A085 Series Replacement
APV/SPX Heat Exchanger Plates
The production of heat exchanger plates usually includes the following steps:
1. Material preparation: First, select appropriate materials according to design requirements, such as stainless steel, copper, aluminum, etc. Ensure material quality meets requirements.
2. Plate forming: Processing raw materials into plates of specified size and shape through processes such as stamping, cutting or CNC machining.
3. Surface treatment: Cleaning, polishing or coating the surface of the plate to improve surface smoothness and corrosion resistance.
4. Pattern stamping: According to the design requirements, pattern stamping or concave-convex processing is performed on the surface of the plates to increase the heat conduction surface area between the plates.
5. Assembly: Stack and assemble the processed plates according to the design requirements to form a complete heat exchanger plate assembly.
6. Quality inspection: Conduct quality inspection on the produced plates, including inspection of size, surface quality, strength, etc., to ensure that the products meet standard requirements.
7. Packaging and storage: Pack qualified plates and store or transport them properly to ensure that the product is not damaged during transportation and use.
Through the above production steps, heat exchanger plates can be produced according to design requirements and quality standards, and used in various industrial heat exchange equipment to improve heat exchange efficiency and performance.
Regular Heat Exchanger Plates Material
- AISI 304 is usually 0.4 or 0.5 mm thickness
- AISI 316 is always 0.5 and 0.6 mm
- 254 SMO (high alloy) typically 0.6 mm
- Titanium plates are always 0.5 and 0.6 mm
- Some have thicker plates (for high pressure applications)
- Some PHEs have 0.4 mm (low pressure operation)
- Hastelloy C-276 (nickel alloy) typically 0.6 mm
| Brand | Model |
| APV/SPX | H17,N35,N50,J060,J092,J107,J185,B063,A055,A085,Q080 Q030,Q055,R8G1,A145,TR9L4,TR9L3,TR9L2,TR9L1,SR14GD |
| Material | Specification |
| Stainless Steel | SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy | C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Applacations:
The application areas of heat exchanger plates are as follows:
1. Widely used for Hotels
2. Garment Shops
3. Building Material Shops
4. Machinery Repair Shops
5. Manufacturing Plant
6. Food & Beverage Factory
7. Farms, Restaurant,Retail, Food Shop
8. Printing Shops, Construction works
9. Energy & Mining, Food & Beverage Shops
Q&A
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of plate heat exchangers, plates, gaskets, plate mould with 18 years' experience.
2. Q: How will the goods be delivered?
A: Normally shipping by sea / by air or by international express like TNT, DHL, UPS, etc.
3. Q: Can I customize samples of heat exchanger plates?
A: Yes,we welcome sample order to test and check quality.
4. Q : Can you accept mixed batch of different heat exchanger plates and OEM service?
A : Yes,we support mixed models and OEM service.
Product Tags:
|
|

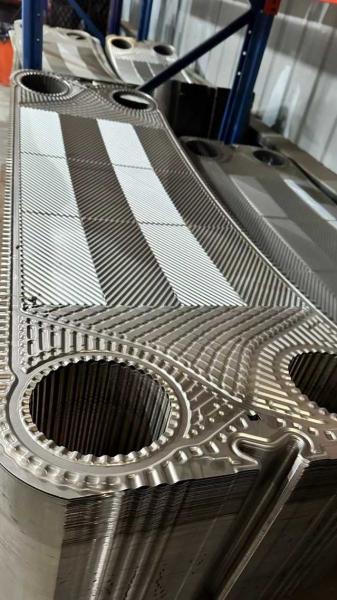

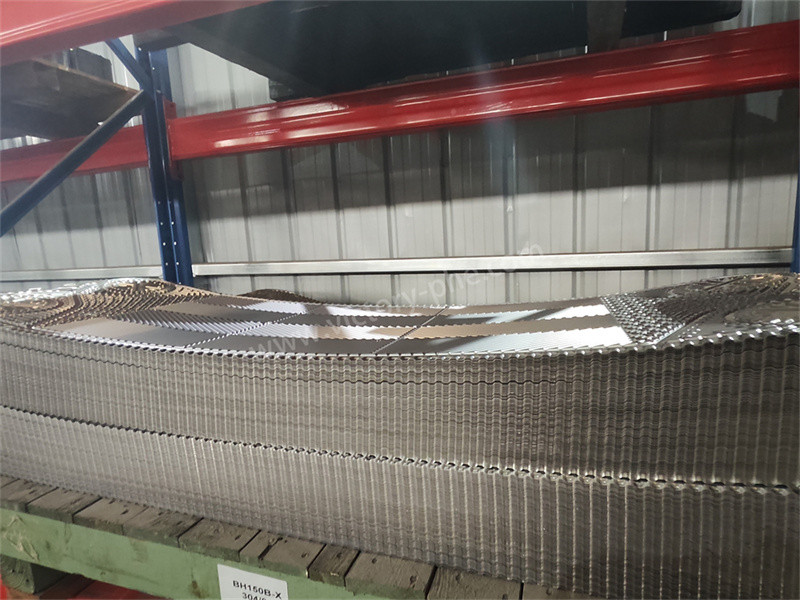

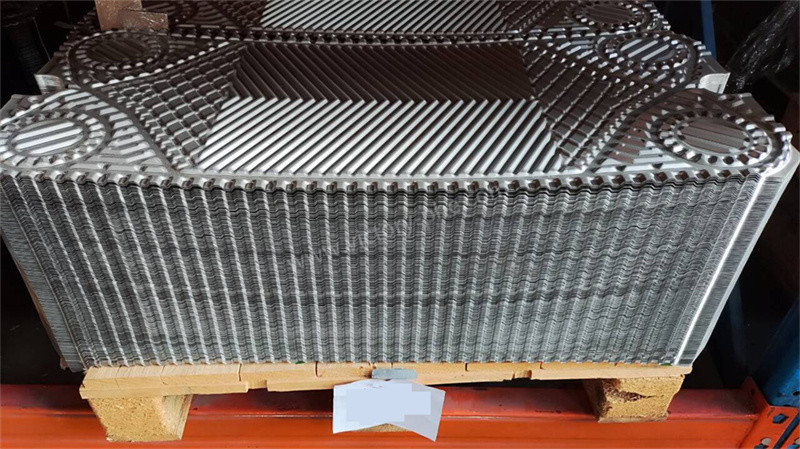

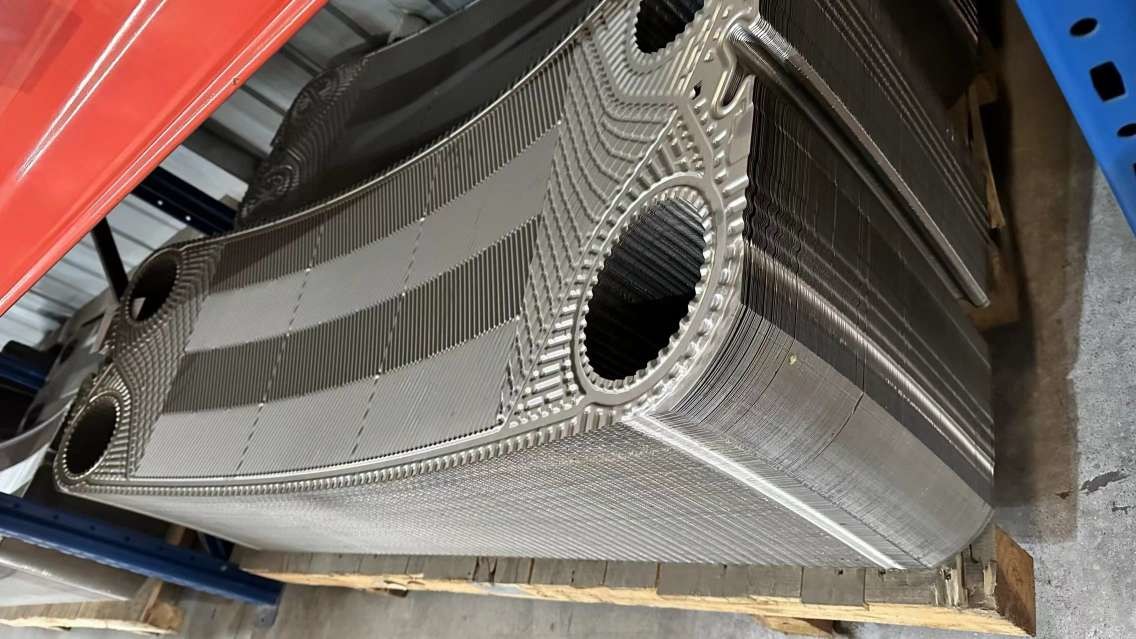

H17 APV SPX Heat Exchanger Plate Alloy C276 Stainless Steel Images
|
