PRODUCT DESCRIPTION

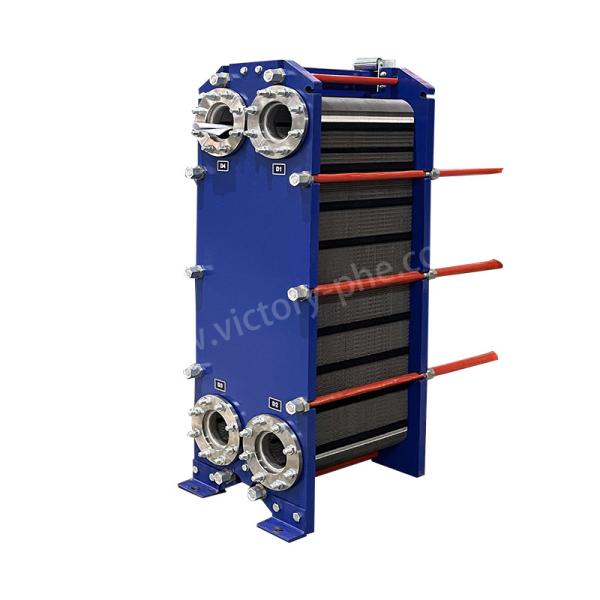

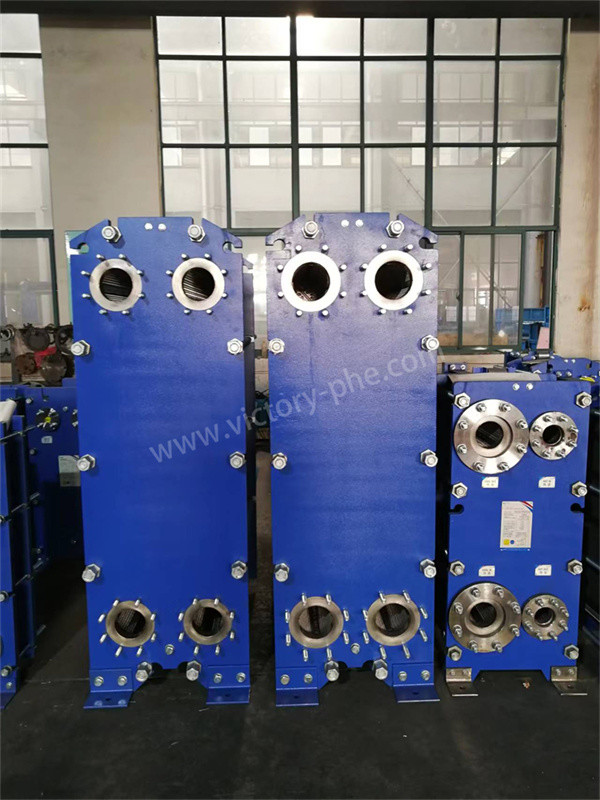

Customized Efficient Plate Heat Exchanger for Water Oil Milk Optimal Heat Transfer

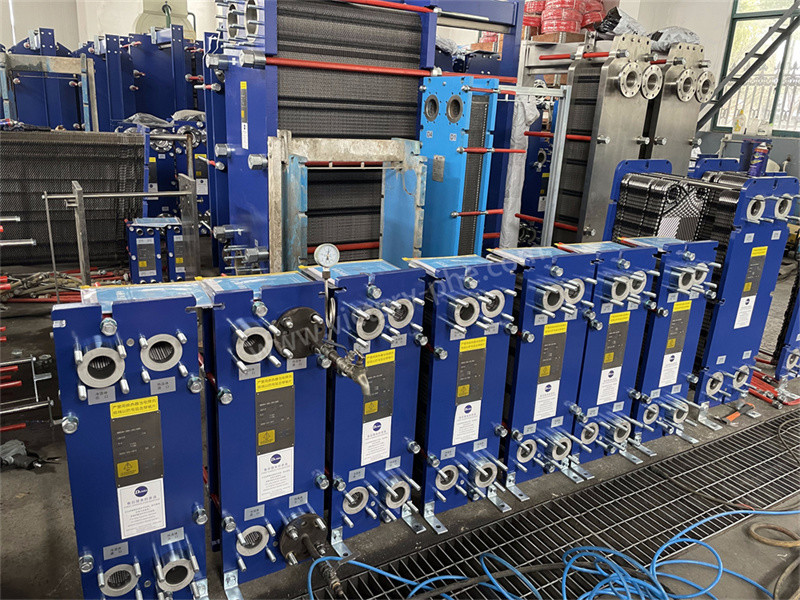

Plate Heat Exchangers
-
The plate heat exchanger is a highly efficient heat exchanger composed of stacked metal plates with a corrugated shape, maximizing the heat transfer surface area.
-
Its key components include plates, gaskets, compression plates, and frames, creating thin rectangular channels for fluid flow and ensuring proper sealing.
-
The cold and hot fluids pass through separate channels, exchanging heat with the plates to achieve the desired temperature for various applications.
| Model | HU03/HM3 |
| Plate Thickness | 0.5/0.6mm |
| Plate Hole Size | 30mm |
| Maximum Throughput | 15m3/h |
| Adapter Pipe For Large-diameter | DN30 |
| Working Pressure | 1.0/1.6MPa |
| Test Pressure | 1.3/2.1Mpa |
| Model | Standard maximum flow rate m3/h | Maximum number of assembled pieces N | Clamping size A | Maximum length L1 |
| VH03 | 15 | 61 | N*(2.6+X) | 353 |
| VM3 | 15 | 61 | N*(3.4+X) | 353 |
Applications
- Chemical industry: used for heating or cooling fluids in chemical production.
- Petroleum and natural gas industry: used for heating crude oil and natural gas, as well as cooling liquefied natural gas.
- Pharmaceutical industry: used to control temperature in the pharmaceutical process.
- Food and beverage industry: used for heating or cooling fluids in food and beverage production.
- Power industry: used for cooling circulating water in power plants.
| Product parameter of gasketed plate heat exchanger |
| Item | plate heat exchanger |
| Brand | Victory |
| Plate material | Titanium/Nickle/hastolly/Stainless steel 0.5mm 0.6mm 0.7mm 0.8mm 1mm |
| Gasket material | NBR HNBR EPDM HEPDM VITON FKM Silicone |
| Frame material | Painted Carbon steel |
| Color of frame | blue or customed color |
| Connection type | flange or thread |
| Flange standard | ANSI ASME BS BA JIS DIN GB ISO |
| Tightening bolt | M24 M30 M39 |
| Design pressure | highest 20mpa, lowest 10Mpa |
| Work pressure | normal 12.5Mpa |
| MOQ | 1 set |
| Package | polywood case |
| Warranty | one year |
| OEM | Can make replacement |
| Plate Material | Suitable Fluid |
| Stainless steel (SUS304, 316L etc.) | Pure water, River water, Edible salt water, Mineral oil |
| Titanium, Ti-pd | Brine, sea water, Salt water |
| SMO254 | Dilute sulphuric acid, Salt water solution, Inorganic aqueous solution |
| Ni | High temperature, High concentration of caustic soda |
| Hastelloy (C276, C22) | Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid |
| Main Body Gasket | Operating Temperature (℃) | Suitable Fluid |
| NBR | -15 ~ +135 | Water, Sea water, Mineral Salt, Brine |
| EPDM | -25 ~ +180 | Hot water, Vapour, Acid, Base |
| F26 | -25 ~ +230 | Acid, Base, Fluid |
| FTP | 0 ~ +160 | Concentrated acid, Base, High temperature oil, Vapour |
